9-95A 660V DIN Rail Contactor for Motor Control

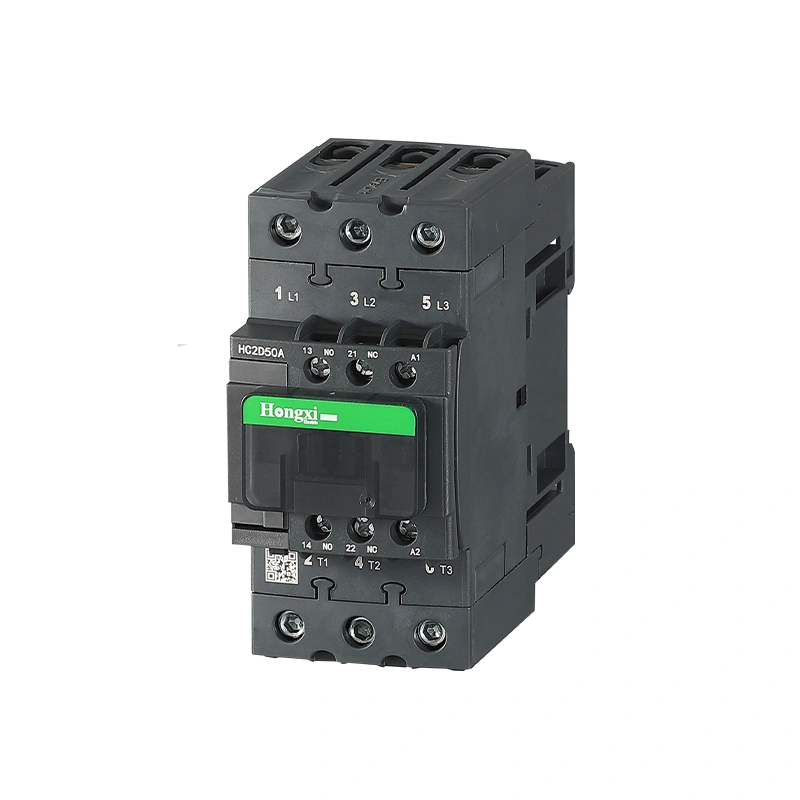

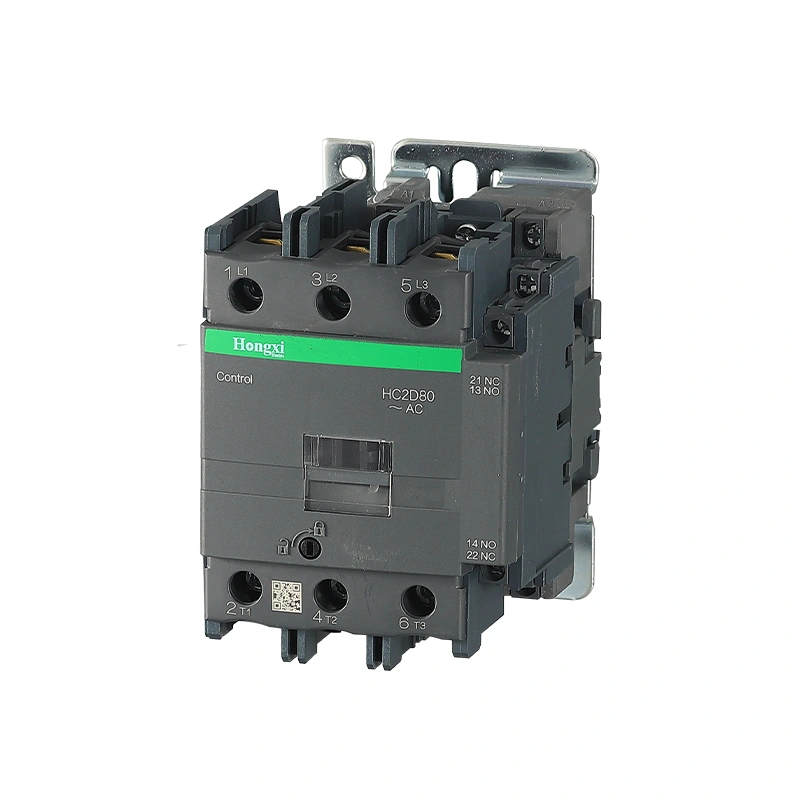

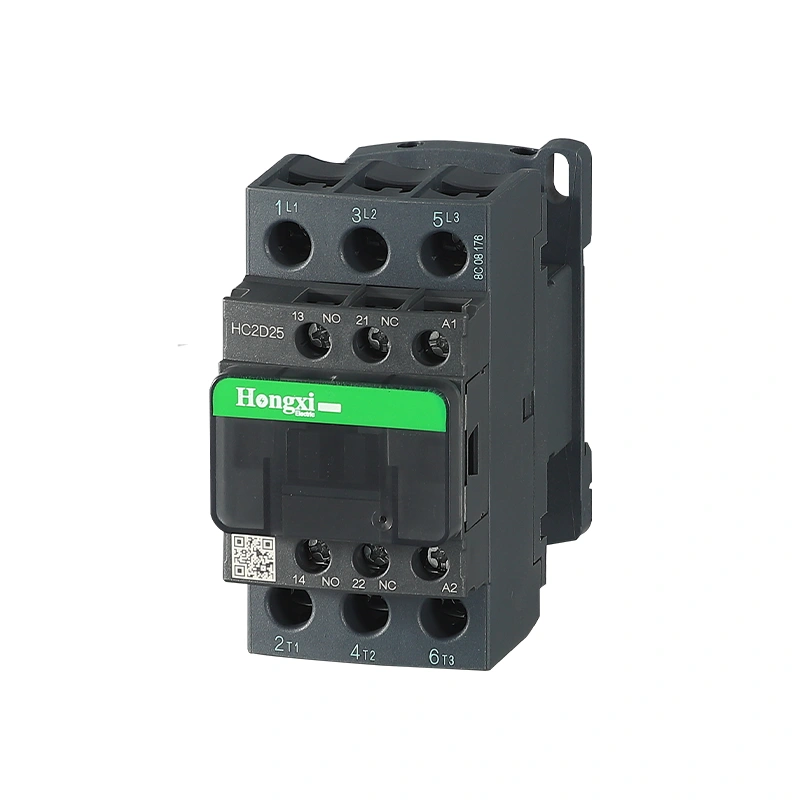

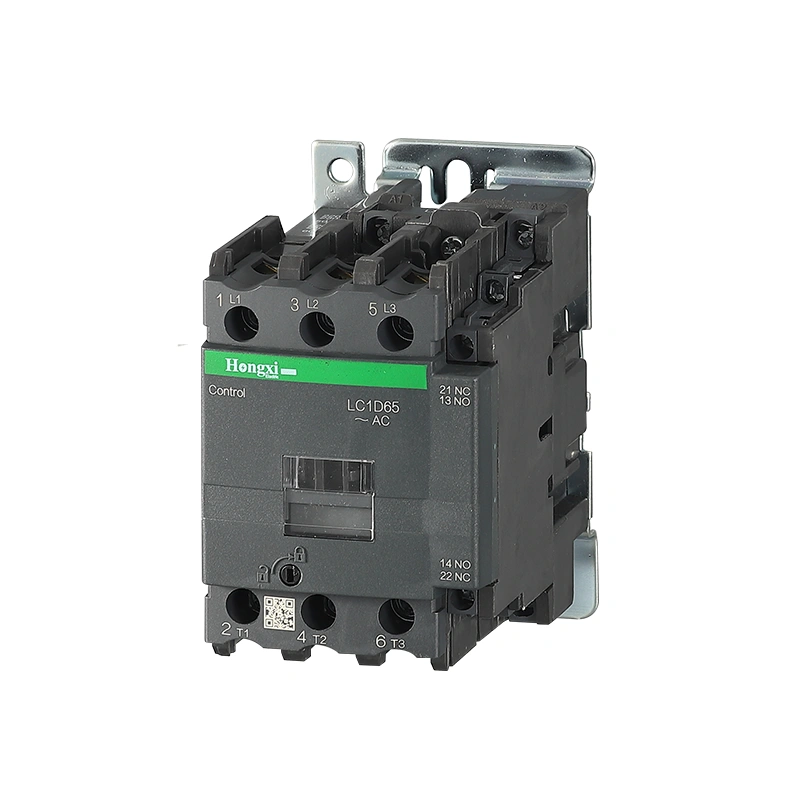

The HC2 Series AC Contactor is suitable for 50Hz/60Hz circuits with a rated voltage of up to 660V and a rated current of up to 95A. This contactor is used for switching circuits and frequently starting and controlling AC motors.

Quick Reference – Key Specs

Parameter	HC2-09	HC2-12	HC2-18	HC2-25	HC2-32	HC2-40	HC2-50	HC2-65	HC2-85	HC2-95
Rated operational current (380V AC-3)	9A	12A	18A	25A	32A	40A	50A	65A	80A	95A
Controlled motor power (380V AC-3)	2.2kW	3kW	4kW	5.5kW	11kW	15kW	18.5kW	22kW	25kW	45kW
Thermal current	20A	25A	32A	40A	50A	60A	75A	80A	110A	125A

*Full technical specifications including coil voltage codes (B5/C5/E5…), wiring diagrams, and dimensional drawings are available in the section above.*

General

Coil voltage (V)

110

127

220

240

380

415

440

480

660

50Hz

60Hz

50/60Hz

The main technical parameters

Type	HC2- 09	HC2- 12	HC2- 18	HC2- 25	HC2- 32	HC2- 40	HC2- 50	HC2- 65	HC2- 85	HC2- 95
Conventional insulation (V)	660	660	660	660	660	660	660	660	660	660
Conventional thermal current (A)	20	25	32	40	50	60	75	80	110	125
Rated operational current 380VAC3	9	12	18	25	32	40	50	65	80	95
Controlled power (kW)	2.2	3	4	5.5		11	15	18.5	22	25
	4	5.5	7.5	11		18.5	22	30	37	45
	4	5.5	9	11		22	25	37	45	45
	4	5.5	9	11		22	30	37	45	45
	5.5	7.5	10	15		30	33	37	45	45
Note	The installation of the relays can be done with two screws, and also uses the 35mm installation rail.					The installation of the relays can use three screwsand also use the 75mm or 35mm installation rail.

Normal working conditions and installation conditions

Ambient air temperature:-5℃ to+40℃, with the 24-hour average not exceeding +35℃.
Elevation: No more than 20o0 meters.
Atmospheric conditions: At +40°C, the relative humidity does not exceed 50%. At lower temperatures, higher relative humidity is allowed. For the wettest month, the average minimum temperature does not exceed +25℃, and the average monthly maximum relative humidity does not exceed 90%.
Condensation on the product due to temperature changes should be considered.
Pollution Level: Level 3.
Installation Category: Category Ⅲ.
Installation Conditions: The installation surface can have a slope of up to ±50° relative to the vertical.
Shock and Vibration: The product should be installed and used in locations free from significant shaking, shock, and vibration.
