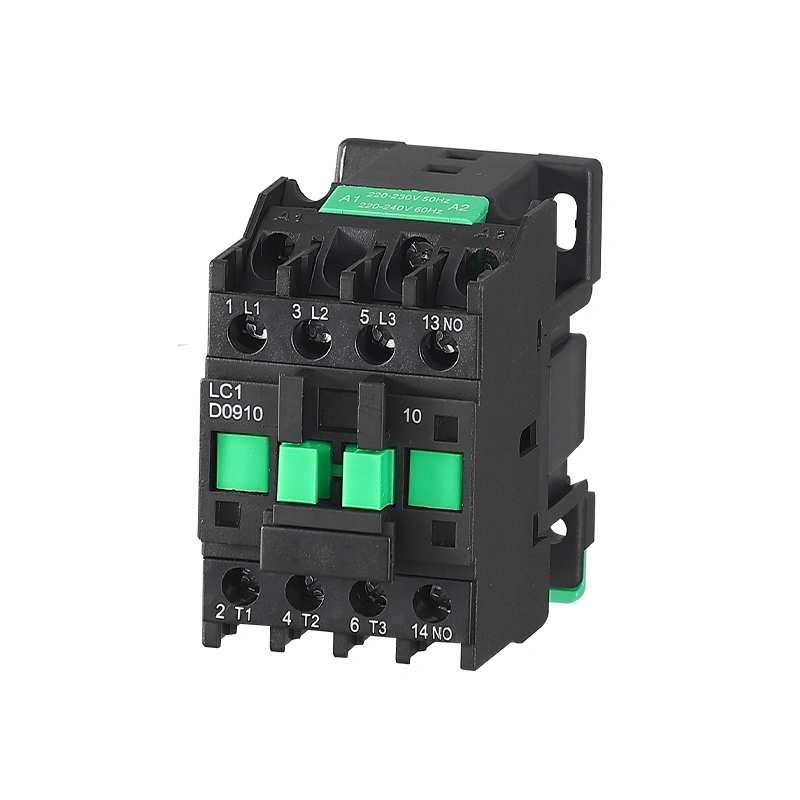

The HC1 Series AC Contactor is designed for 50Hz/60Hz circuits with a rated voltage of up to 660V and a rated current of up to 95A. This contactor is used for remote switching of electrical circuits, as well as frequent starting, stopping, and control of AC motors.
9-95A, 660V, 50/60Hz. DIN rail mount (35/75mm). IEC60947-4 compliant. For AC motor starting, switching, and remote control. Factory direct.
4 pole contactor rated 20-200A, 50/60Hz. Supports screw-clamp, plug-in, ring terminal and busbar wiring. AC/DC control voltages. IEC60947-4 compliant. For lighting and motor control. Factory direct.

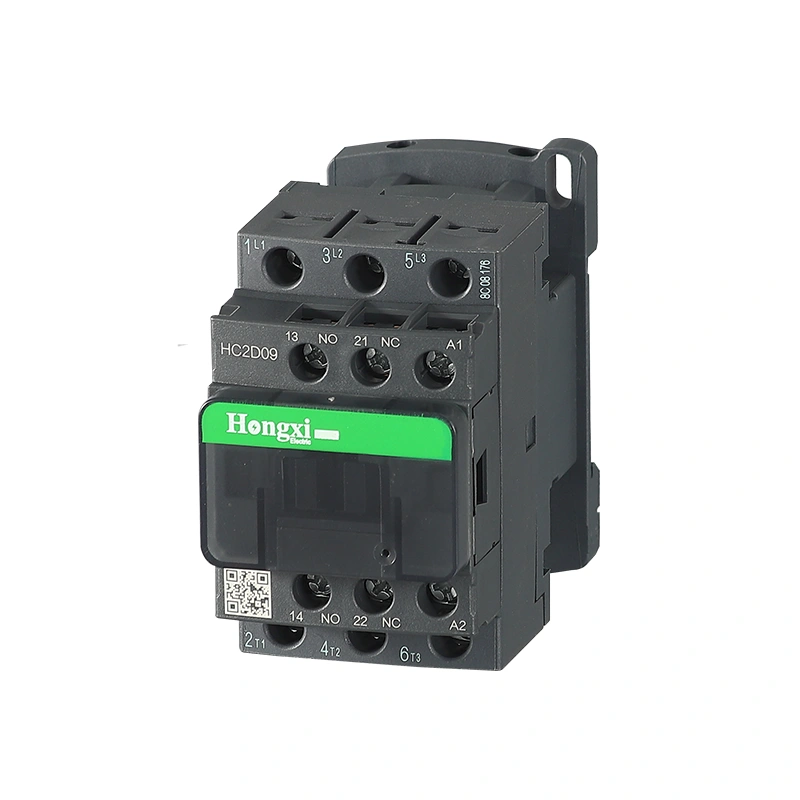

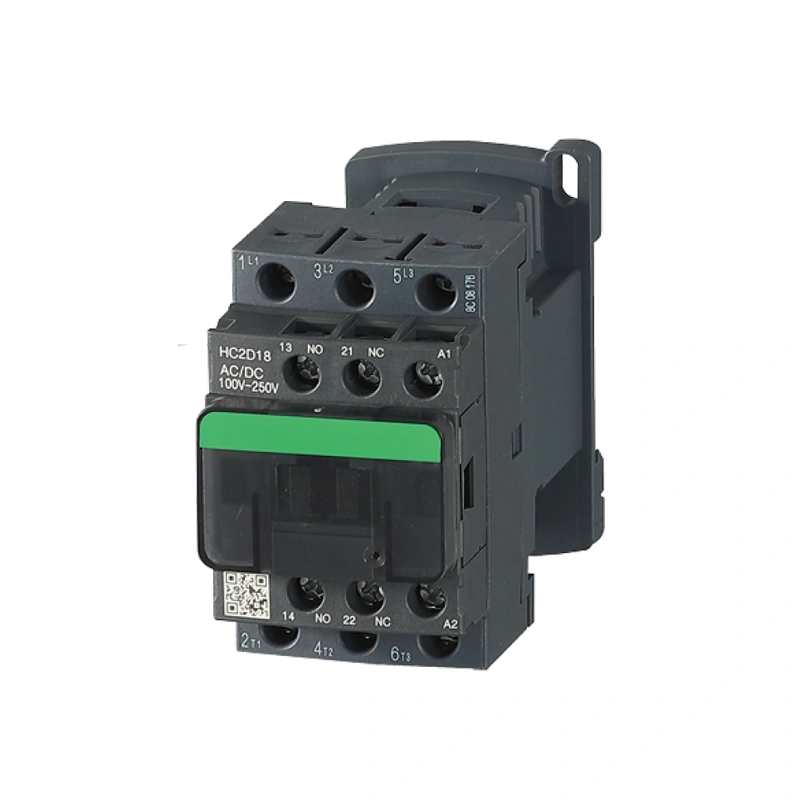

The HC2 AC/DC Series Contactor is a versatile 3-pole/4-pole contactor with AC/DC control coils (12-60V AC/DC, 110-250V AC/DC, 380-415V AC). It supports rated currents from 9A to 95A, with a rated insulation voltage up to 1000V and impulse voltage up to 8kV, controlling motors up to 55kW (AC-3 @400V).

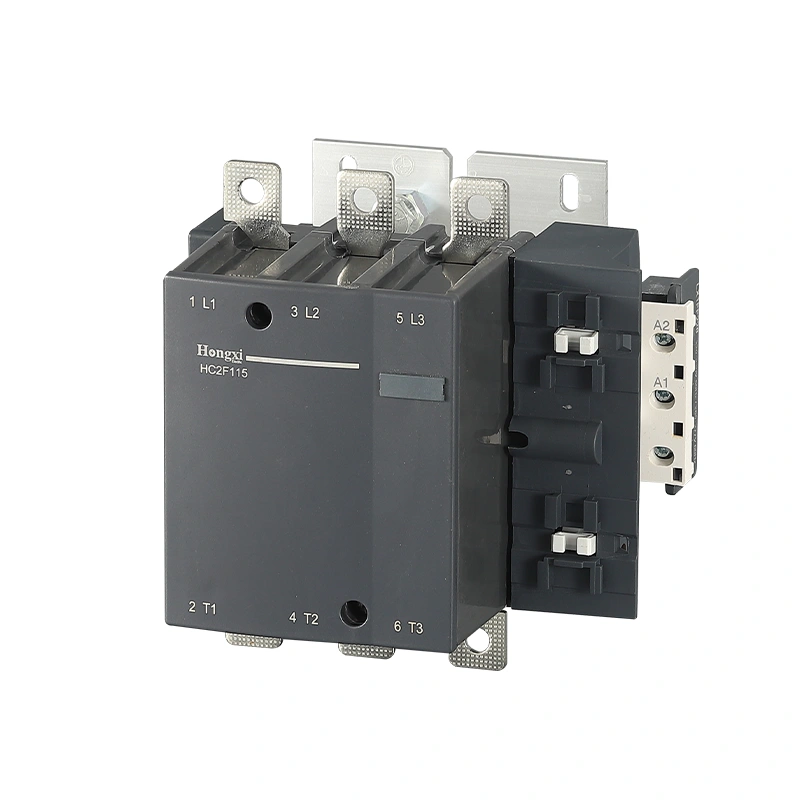

The HC2‑F Series AC Contactors are designed for 50Hz/60Hz (or 40‑400Hz) circuits with voltage up to 600V and current up to 630A. Used for switching main circuits and frequently starting/controlling motors. Available from HC2‑F115 to HC2‑F630, compliant with IEC/GB standards.

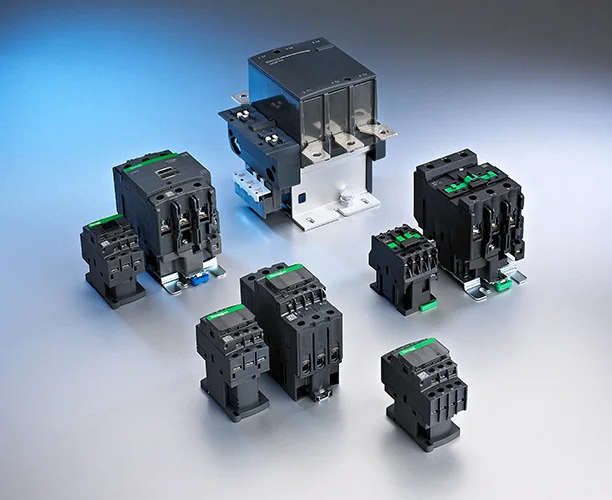

From 9A to 95A (HC2 series) and up to 630A (HC2-F series). Suitable for 50/60Hz circuits up to 660V. Controls motor starting, stopping, and reversing. AC/DC coil options available. Can be combined with auxiliary contacts, air delayers, and mechanical interlocks.
| Model | Rated Current (A) | Controlled Power at 380V (kW) | Conventional Thermal Current (A) | Coil Voltage Options (AC) | Mounting |
|---|---|---|---|---|---|
| HC2-09 | 9 | 2.2 | 20 | 24V-660V | 35mm DIN rail |
| HC2-12 | 12 | 5.5 | 25 | 24V-660V | 35mm DIN rail |
| HC2-18 | 18 | 7.5 | 32 | 24V-660V | 35mm DIN rail |
| HC2-25 | 25 | 11 | 40 | 24V-660V | 35mm DIN rail |
| HC2-32 | 32 | 15 | 50 | 24V-660V | 35mm DIN rail |
| HC2-40 | 40 | 18.5 | 60 | 24V-660V | 35mm or 75mm rail |
| HC2-50 | 50 | 22 | 75 | 24V-660V | 35mm or 75mm rail |
| HC2-65 | 65 | 30 | 80 | 24V-660V | 35mm or 75mm rail |
| HC2-80 | 80 | 37 | 110 | 24V-660V | 35mm or 75mm rail |
| HC2-95 | 95 | 45 | 125 | 24V-660V | 35mm or 75mm rail |
.webp)

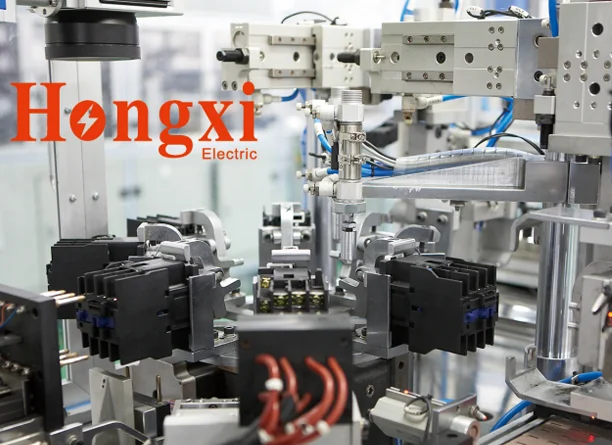

Our contactors meet IEC/EN 60947-4-1 standards. Partner factories are ISO9001 certified, ensuring mechanical endurance up to 10 million operations and consistent performance under rated load.
CONTACT US >>
How do I choose between HC2-09 and HC2-12 for my motor?
Can I use an AC Contactor with a DC coil?
Do I need an auxiliary contact block?
What is the difference between AC-3 and AC-4 duty?
Will the HC2-25 fit on the same rail as my existing contactor?
