Surge Protective Device

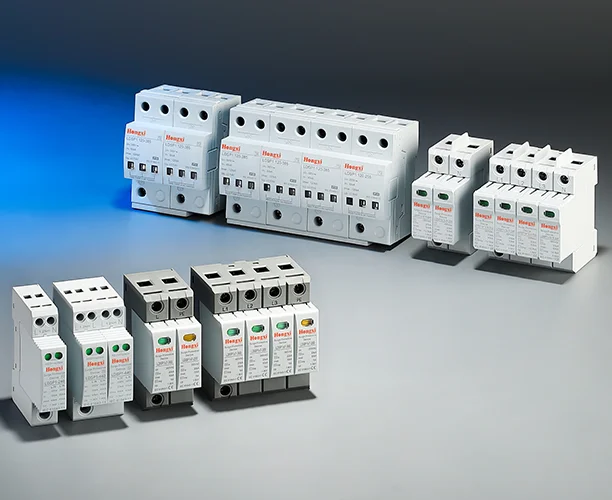

The HS1 Type 1+2 AC Surge Protective Device delivers combined lightning and surge protection for low‑voltage AC systems. With an impulse discharge current (Iimp) of 12.5kA (10/350µs), a maximum discharge current (Imax) of 50kA (8/20µs), and a rapid response time ≤25ns, it is engineered for high‑exposure environments. Compliant with IEC 61643‑11 and available in five flexible pole configurations (2+0, 3+0, 4+0, 1+1, 3+1).

The HS2 Type 1+2 AC Surge Protective Device is a combined lightning and surge arrester compliant with IEC/EN standards. With Iimp 7kA (10/350µs), In 20kA, and Imax up to 50kA (8/20µs), it features a plug‑in modular design, built‑in thermal disconnection, visual green/red status indication, and optional remote signaling. Built‑in safety fuse and DIN‑rail mounting make it ideal for low‑voltage distribution systems in buildings, industrial plants, and data centers.

The HS3 Type 2 AC Surge Protective Device (SPD) is a high‑performance surge arrester engineered for low‑voltage power distribution systems. With Imax 120kA (8/20μs), In 60kA, and Uc options from 275V to 440V, it features integrated thermal disconnection, red fault display, optional remote signaling, and 35mm DIN‑rail mounting. Compliant with IEC 61643‑11, it is ideal for industrial plants, commercial buildings, data centers, and critical infrastructure requiring robust Type 2 surge protection.

The HS4 Type 2 AC Surge Protective Device (SPD) is a high‑performance surge arrester for low‑voltage power distribution systems. With Imax 40kA (8/20μs), In 20kA, and Uc options from 275V to 440V, it utilizes varistor voltage‑limiting technology for low residual voltage. Features include pluggable design, internal thermal disconnection, green/red status indication, and optional remote signaling. Compliant with IEC 61643‑11 / EN 61643‑11, it is ideal for protecting sensitive electronic equipment in residential, commercial, and light industrial installations.
