Residual Current Circuit Breaker

Protect lives and equipment from ground faults with HD/HID series RCCBs. Selectable sensitivity (10mA/30mA/100mA) and fast tripping (≤0.1s) ensure personnel safety and fire prevention. Rated 16A-100A, 2P/4P, 6kA conditional short-circuit capacity. Compliant with IEC/EN 61008-1.

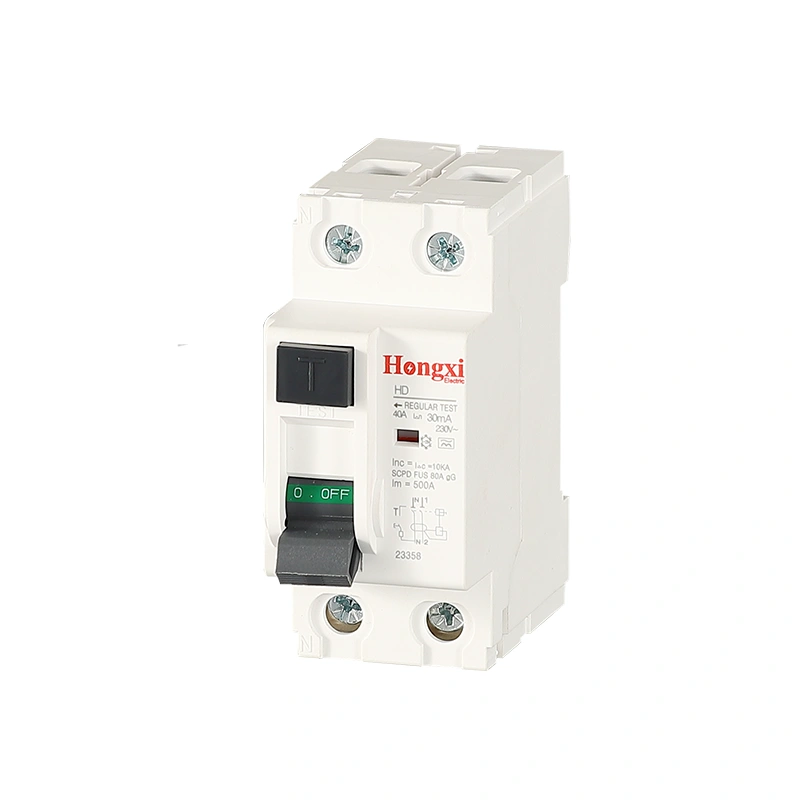

IEC61008-1 Earth Leakage Protection Breaker 16A-100A

The HD Residual Current Circuit Breaker is designed to protect against ground faults; this device complies with IEC61008-1 standard. It offers rated currents from 16A to 10oA, with 2-pole or 4-pole options, and rated sensitivity currents of 10mA, 30mA, or 100mA.

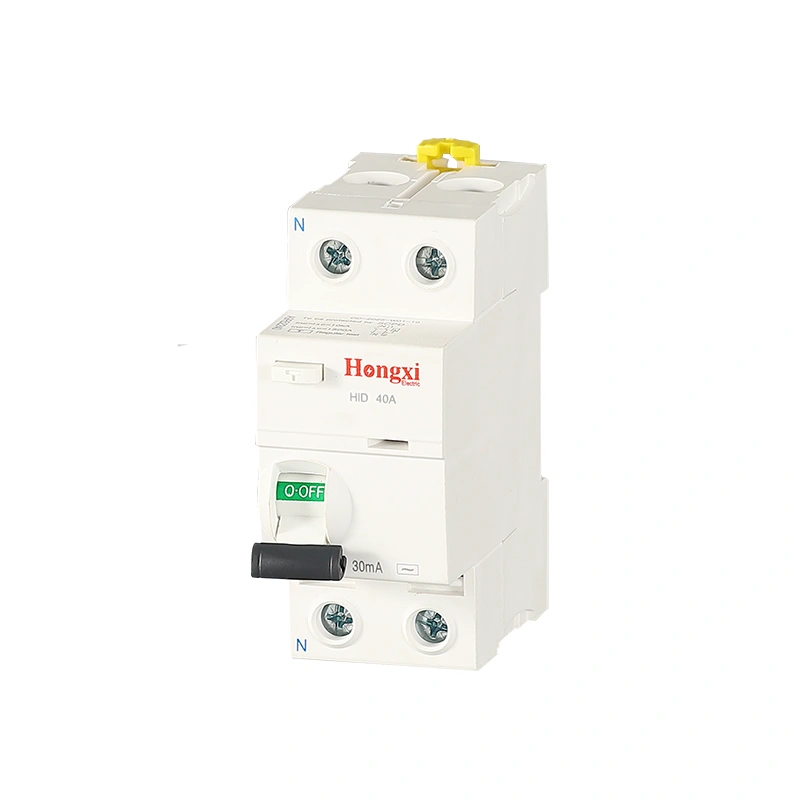

HID

16A-100A Ground Fault Protection Circuit Breaker IEC61008-1 Certified

The HID Residual Current Circuit Breaker is designed to protect against ground faults; this breaker meets EN/IEC61008-1 standards. It offers 16A-100A rated current, 2(1+N)/4(3+N) pole options, and 10mA/30mA/100mA rated sensitivity currents.

GET IN TOUCH >>

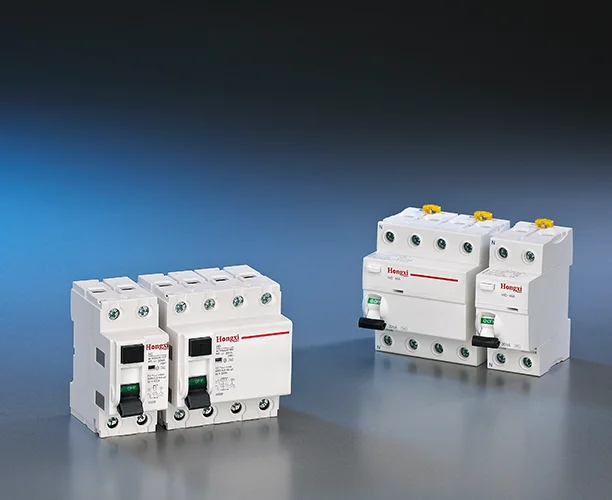

Select Your Residual Current Circuit Breaker

Rated from 16A to 100A, for 2P and 4P configurations.Choose sensitivity: 10mA, 30mA, or 100mA. Fast tripping time ≤0.1s.
Protects against ground faults and electric shock. Suitable for residential, commercial, and industrial distribution.

Fast Tripping (≤0.1s)
Selectable Sensitivity (10/30/100mA)
6kA Conditional Short-Circuit Capacity
36mm / 72mm Width (fits standard panels)

Residual Current Circuit Breaker Parameter Overview

Model	Poles	Rated Current (A)	Sensitivity (mA)	Width (mm)	Short-Circuit Capacity (Inc)
HD-16/2/30	2P	16	30	36	6kA
HD-32/2/30	2P	32	30	36	6kA
HD-40/4/30	4P	40	30	72	6kA
HID-63/4/100	4P	63	100	72	6kA
HID-100/4/100	4P	100	100	72	6kA

Quality You Can Rely On

Our contactors meet IEC/EN 60947-4-1 standards. Partner factories are ISO9001 certified, ensuring mechanical endurance up to 10 million operations and consistent performance under rated load.

Regarding the Q&A on Residual Current Circuit Breaker

What is the difference between 10mA, 30mA, and 100mA sensitivity?

10mA is for personal protection in wet or high-risk areas (e.g., bathrooms, pools). 30mA is the standard for general personnel protection in homes and offices. 100mA is primarily for fire prevention and equipment protection.

Can I use a 2P RCCB on a single-phase system?

Yes, a 2P (2-pole) RCCB is designed for single-phase systems (live + neutral). A 4P RCCB is for three-phase systems (3 phases + neutral).

Will an RCCB protect against short circuits or overloads?

No. An RCCB only protects against earth leakage (ground faults). You must pair it with an MCB or use an RCBO for combined protection against short circuits and overloads.

Why does my RCCB trip frequently without an apparent fault?

Possible causes include: moisture in the circuit, damaged insulation on an appliance, a neutral-to-earth fault, or a too-sensitive setting for the environment. Try unplugging all devices and reconnecting them one by one to isolate the issue.

Do HD/HID series RCCBs fit standard distribution boards?

Yes. HD/HID series RCCBs have standard widths: 36mm for 2P and 72mm for 4P. They mount on a 35mm DIN rail, which is the industry standard for low-voltage panels.
