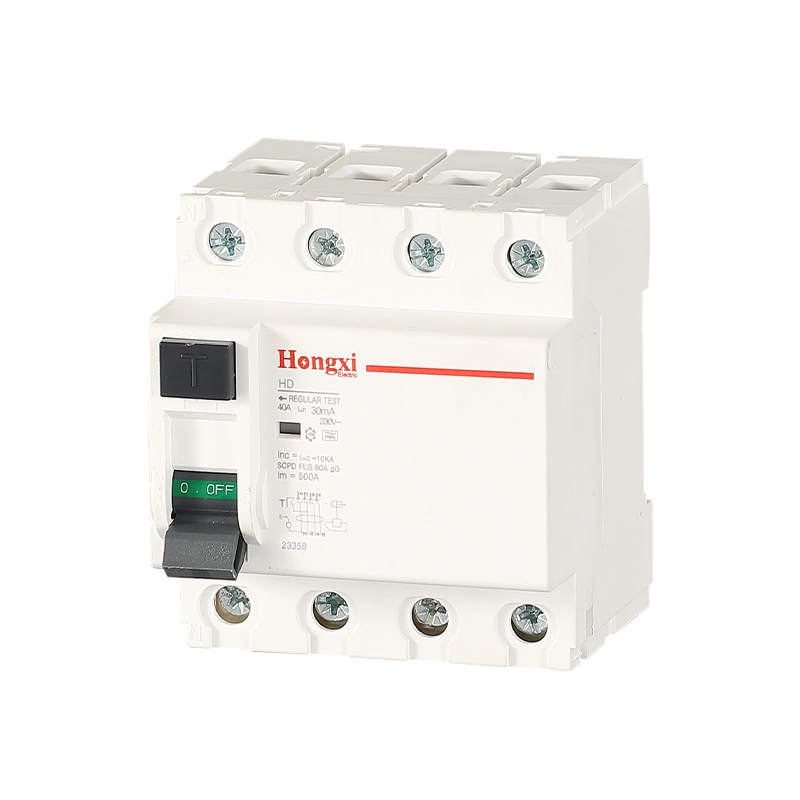

IEC61008-1 Earth Leakage Protection Breaker 16A-100A

IEC61008-1 Earth Leakage Protection Breaker 16A-100A

This earth leakage protection breaker conforms to IEC61008-1 standard and serves for ground fault protection. It is available in 2-pole and 4-pole versions, with rated current from 16A to 100A and rated sensitivity current of 10mA, 30mA and 100mA. Built with electromagnetic release and pin-type terminals suitable for cables up to 35mm², it can be mounted on 36mm DIN rail and features IP20 protection. It achieves rapid breaking within 0.04s with 6kA rated conditional short-circuit current.

GET IN TOUCH

This HD earth leakage protection breaker is specially developed for ground fault protection and strictly complies with IEC61008-1 industry standard.

The product covers rated current range from 16A to 100A, supports 2-pole and 4-pole structure, and is equipped with three kinds of rated sensitivity currents: 10mA, 30mA and 100mA to meet diverse usage scenarios.

Adopting electromagnetic release mechanism and pin-type terminals that can match cables up to 35mm², this breaker is applicable to 36mm DIN rail installation and owns IP20 protection level. It features fast residual current breaking performance up to 0.04 seconds, and is equipped with 6kA rated conditional short-circuit current, ensuring stable and safe operation in various power distribution systems.

Standard		Confirming to IEC61008-1
Protection		Ground fault
Rated current, In		16, 25, 32, 40, 63, 80, 100A
Number of poles		2(1+N), 4(3+N)pole
Rated sensitivity currents, I△n		10, 30, 100mA
Rated residual non-operating current		0.5 × I△n
Rated impulse withstand voltage Uimp		6000V
Rated voltages	2pole	240VAC 240/415VAC
	4pole
Residual current off-time at l△n		≤0.1s
Rated residual current making & breaking capacity, I△mA		500A for In=16, 25, 32, 40A 630A for In=63, 80, 100A
Rated conditional short-circuit current, Inc		6kA
Type of trip		Electro-magnetic release
Type of terminal		Pin type
Terminal capacity		Cables up to 35mm²
Degree of protection		IP20

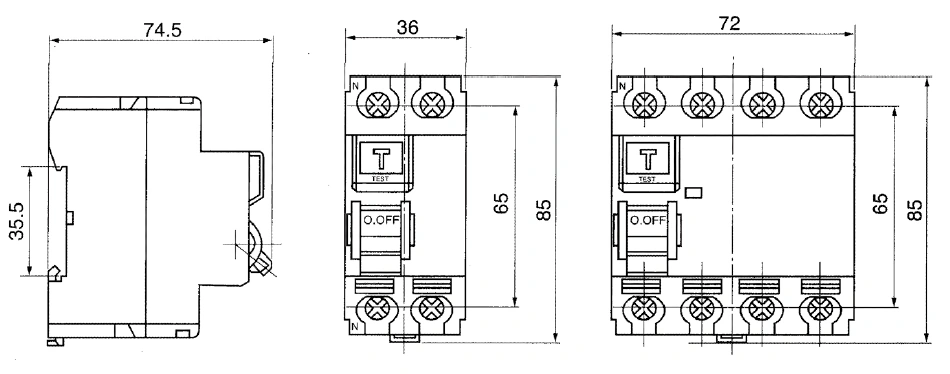

Installation		36mm for 2P, 72mm for 4P DIN rail
Slot size		45mm

Endurance

In	Operating cycles		Operating frequency (operations/h)
In	on-load operating cycles	off-load operating cycles	Operating frequency (operations/h)
16,25,32	2000	2000	240
40,63,80,100	2000	1000	120

Breaking the time of residual current

Breaking the time of residual current
In(A)	I△n (A)	I△n	2I△n	5I△n	5A, 10A, 20A, 50A 100A, 200A, 500A
16, 25, 32, 40, 63, 80, 100	0.01, 0.03, 0.1, 0.3	0.1s	0.08s	0.04s	0.04s	Max. Breaking time
