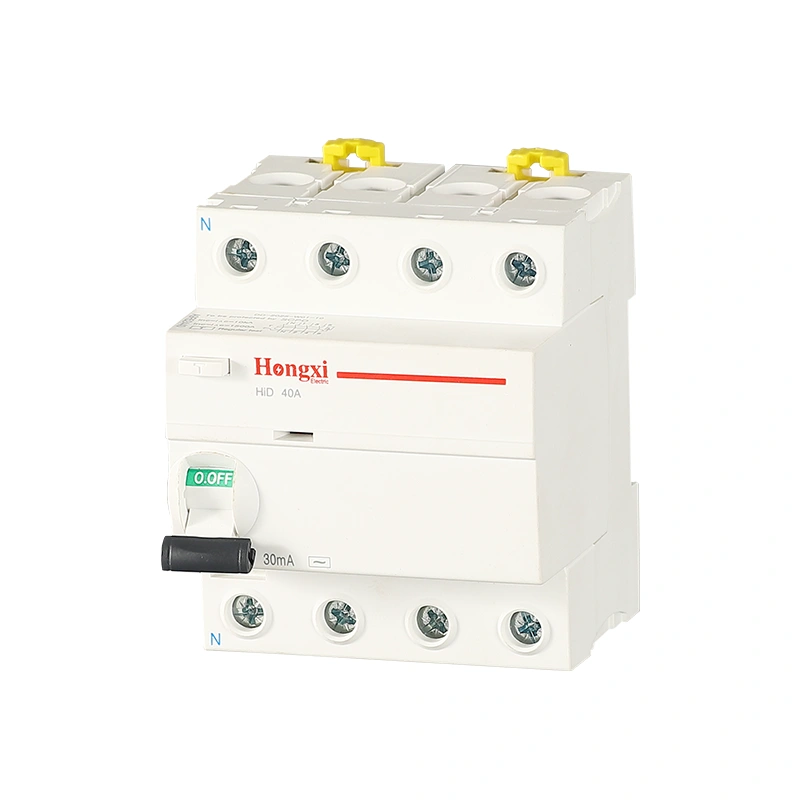

16A-100A Ground Fault Protection Circuit Breaker IEC61008-1 Certified

This HID ground fault protection device complies strictly with EN/IEC61008-1 standards, mainly used for ground fault leakage prevention. It is available in 2(1+N) and 4(3+N) poles, covering full range rated current 16A-100A with multi-level sensitive current options. Adopts electromagnetic tripping structure, supports lug and pin type terminals applicable to cables up to 35mm², compatible with 36mm/72mm standard DIN rail installation, equipped with IP20 protection and reliable 6kA short-circuit resistance.

GET IN TOUCH

Our HID ground fault protection circuit breaker is engineered to deliver reliable ground fault protection, fully meeting EN/IEC61008-1 international standards.

It covers complete rated current specifications from 16A up to 100A, and is offered in 2(1+N) pole and 4(3+N) pole types. Three optional rated sensitivity currents, including 10mA, 30mA, and 100mA, can meet different safety protection demands for residential, commercial, and industrial circuits.

Fitted with a mature electromagnetic release system, this breaker is designed with both lug-type and pin-type terminals, which can stably connect cables with a cross-section up to 35mm². It adopts standard DIN rail installation, 36mm for the 2-pole version and 72mm for the 4-pole version, and reaches an IP20 protection degree for daily safe application.

With excellent rapid breaking performance, its maximum residual current breaking time is within 0.1 seconds. Meanwhile, it owns 6kA rated conditional short-circuit current, ensuring stable operation and long service life in various power distribution systems.

Standard		Confirmingto EN/IEC61008-1
Rated conditional short-circuit current, Inc		6kA
Protection		Ground fault
Rated current, In		16,25,32,40,63,80,100A
Number of poles		2(1+N), 4(3+N)pole
Rated sensitivity currents, I△n		10,30,100mA
Rated residual non-operating current		0.5 × I△n
Rated impulse withstand voltage Uimp		6000V
Rated voltages	2pole	230VAC 230/400VAC
	4pole
Protection degree		-25℃~+40℃
Residual current off-time at l△n		≤0.1s
Rated residual current making & breaking capacity, I△m		500A for In=16, 25, 32, 40A 630A for In=63, 80, 100A
Type of trip		Electro-magnetic release
Type of terminal		Lugtype ang Pin type
Terminal capacity		Cables up to 35mm²
Protection degree		IP20

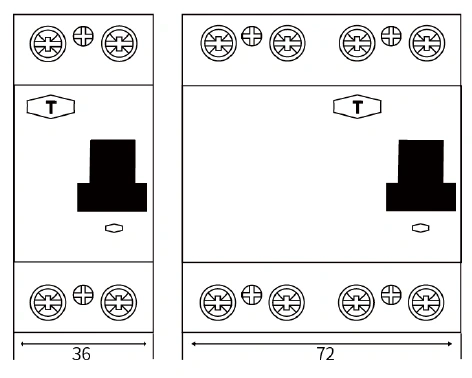

Installation		36mm for 2P, 72mm for 4PDIN rail

Endurance

In	Operating cycles		Operating frequency (operations/h)
In	on-load operating cycles	off-load operating cycles	Operating frequency (operations/h)
16, 25, 32	2000	2000	240
40, 63, 80, 100	2000	1000	120
