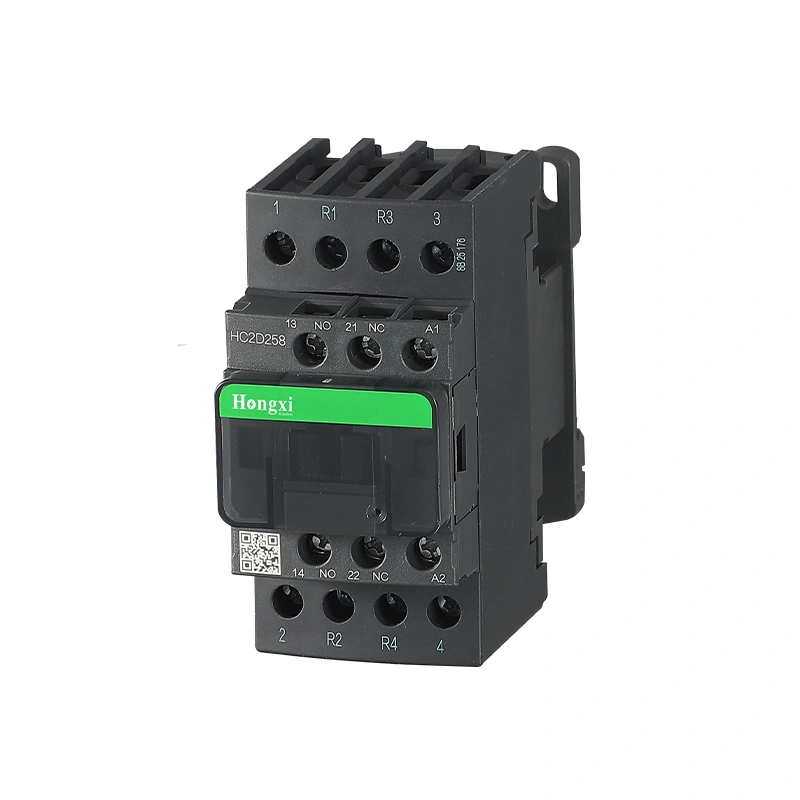

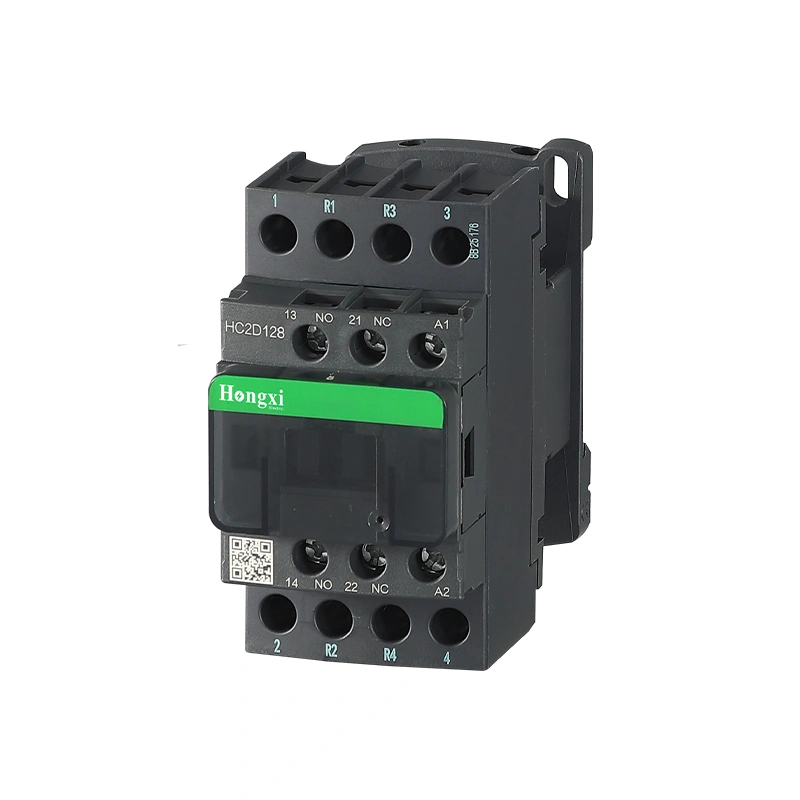

HC2 4P

4 Pole Contactor 20-200A for Lighting & Motor Control

Name: 4 Pole Contactor 20-200A for Lighting & Motor Control
Brand: Hongxi
SKU: 00241
Rating: 4.9 (171 reviews)

The HC2 4P Series AC Contactor supports screw-clamp, plug-in, ring terminal, and busbar wiring. It covers non-inductive load currents from 20A to 200A, with multiple control voltage options (AC/DC) and corresponding model codes. Lightweight (0.365kg–2.860kg) and versatile, it fits most circuit control applications.

GET IN TOUCH

Describe Display
Specifications

Describe Display

The HC2 4P Series AC Contactor supports screw-clamped, connector, ring terminal, or busbar wiring. It covers non-inductive load currents from 20A to 200A, with multiple control voltage options (AC/DC) and corresponding model codes. Lightweight (0.365kg to 2.860kg) and versatile, it's suitable for various circuit control needs.

Key Specifications – HC2 4P Series

Rated Current Range	20A – 200A (non-inductive load)
Rated Voltage	Up to 660V (50/60Hz)
Pole Configuration	4 Pole
Control Voltage	AC / DC (full range codes available, see table below)
Wiring Methods	Screw-clamp / Plug-in connector / Ring terminal / Busbar
Weight Range	0.365kg – 2.860kg
Certification	IEC60947-4 compliant

Specifications

4-pole contactor, screw-clamped terminal, or connector wiring method

Non inductive load maximum current (θ≤ 60℃) usage category AC- A	polar number		Instantaneous auxiliary contact		Basic model, control voltage code needs to be added (1)	Weight (3) kg
	polar number		Instantaneous auxiliary contact		Installation method (2)	Weight (3) kg
20	4	-	1	1	LC1 DT20••	0.365
20	2	2	1	1	LC1 D098••	0.365
25	4	-	1	1	LC1 DT25••	0.365
25	2	2	1	1	LC1 D128••	0.365
32	4	-	1	1	LC1 DT32••	0.425
32	2	2	1	1	LC1 D188••	0.425
40	4	-	1	1	LC1 DT40••	0.425
40	2	2	1	1	LC1 D258••	0.425
60	4	-	1	1	LC1 DT60A••(4)	1.090
	2	2	-	-	LC1 D40008••	1.440
					OrLP1 D40008••	2.210
80	4	-	1	1	LC1 DT80A••(4)	1.150
	2	2	-	-	LC1 D65008••	1.450
					OrLP1 D65008••	2.220
125	4	-	-	-	LC1 D80004••	1.760
					OrLP1 D80004••	2.685
	2	2	-	-	LC1 D80008••	1.840
					OrLP1 D80008••	2.910
200	4	-	-	-	LC1 D115004••	2.860

AC Supply Coil Voltages (50/60Hz)

Voltage (V)	24	42	48	110	115	220	230	240	380	400	415	440	500
LC1 D09…D150 / DT20…DT40 (50/60Hz)	B7	D7	E7	F7	FE7	M7	P7	U7	Q7	V7	N7	R7	-
LC1 D80…D115 (50Hz)	B5	D5	E5	F5	FE5	M5	P5	U5	Q5	V5	N5	R5	S5
LC1 D80…D115 (60Hz)	B6	-	E6	F6	-	M6	-	U6	Q6	-	-	R6	-

DC Supply Coil Voltages (with current suppression module)

Voltage (V)	12	24	36	48	60	72	110	125	220	250	440
LC1D09…D65 & DT20…DT80A	JD	BD	CD	ED	ND	SD	FD	GD	MD	UD	RD
LC1 / LP1 D80	JW	BW	CW	EW	-	SW	FW	-	MW	-	-

Note: For ring terminal or busbar connection, insert "6" before the voltage code (e.g., LC1 DT20•• becomes LC1 DT206••). For other control voltages, please consult our sales team.

Quality & Compliance

IEC60947-4 compliant
Designed for AC-1 utilization category (non-inductive or slightly inductive loads)
Suitable for lighting circuits, motor control, and power distribution applications

Main parameters and technical performance
