Power contactors with control coil 12-60V AC/DC,110-250V AC/DC,380-415V AC

Compliance with requirements
Electromechanical contactors for household and similar purposes
(IEC 61095, (IEC 60947-1, (IEC60947-4-1)

Key Specifications – HC2 AC/DC Series

Number of Poles	3P, 4P
Rated Current (AC-3, 440V)	9A – 95A (11 models: 9/12/18/25/32/38/40/50/65/80/95A)
Rated Insulation Voltage (Ui)	690V – 1000V (model dependent)
Rated Impulse Voltage (Uimp)	6kV – 8kV (model dependent)
Max Controlled Motor Power (AC-3 @400V)	Up to 55kW
Control Coil Voltage Options	12-60V AC/DC \| 110-250V AC/DC \| 380-415V AC
Compliance	IEC 61095 (household), IEC 60947-4-1 (industrial)
Working Temperature	-40°C to +70°C
Max Operating Altitude	3000 meters
Mounting	Mounting board / DIN rail compatible

Number of poles

3P,4P

Power contacts diagram

3N0 (3P)

4NO (4P)

2NO+2NC (4P)

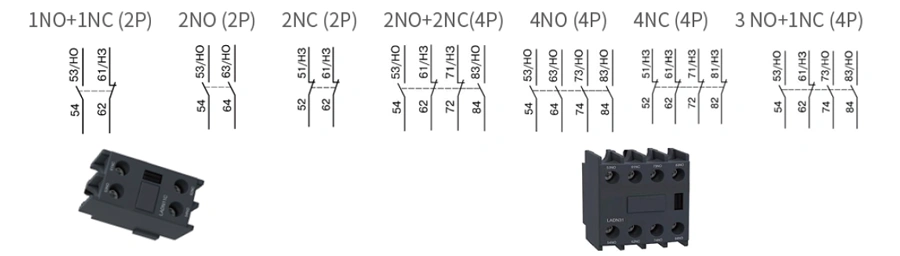

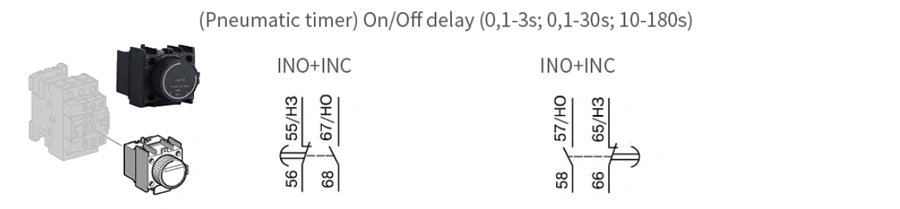

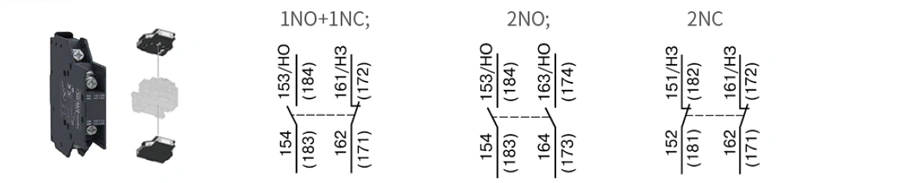

Number of built-in auxiliary contacts

1NO+lNC

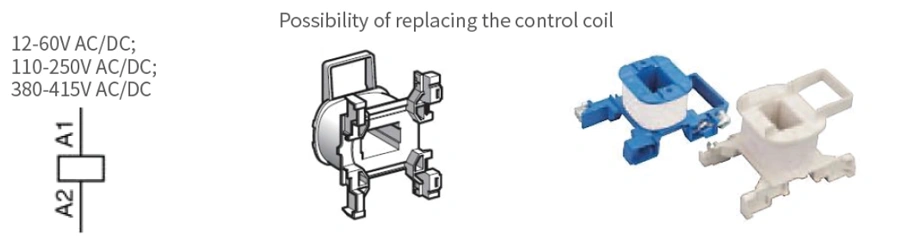

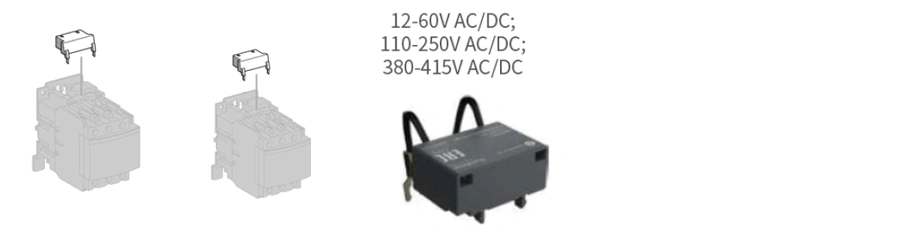

Control circuit control voltage range

12-60V AC/DC;
110-250V AC/DC;
380-415V AC

Electrical Ratings (AC-3 / AC-4)

Type (HC2-)	9	12	18	25	32	38	40	50	65	80	95
Type (HC2-)	9	12	18	25	32	38	40	50	65	80	95	Rated current AC-3, 440V	9A	12A	18A	25A	32A	38A	40A	50A	65A	80A	95A
Rated heat current Ith (A)	25	25	32	40	50	50	60	80	80	125	125
Rated insulation voltage Ui (V)	690	690	690	690	690	690	1000	1000	1000	1000	1000
Rated impulse voltage Uimp (kV)	6	6	6	6	6	6	8	8	8	8	8
Max power AC-3 @380/400V (kW)	4	5.5	7.5	11	15	18.5	18.5	22	30	37	45
Max power AC-3 @415/440V (kW)	4	5.5	9	11	15	18.5	22	25/30	37	45	45
Max power AC-3 @660/690V (kW)	5.5	7.5	10	15	18.5	18.5	30	33	37	45	45

Coil Voltage Options & Performance

Parameter	Specification
Control Coil Voltage Range (AC/DC)	12-60V AC/DC \| 110-250V AC/DC \| 380-415V AC
Operating Voltage Range	Close: (0.85-1.1) x Us; Open: (0.2-0.75) x Us
Coil Power Consumption (Holding / Starting)	8-20 VA (holding) / 70-200 VA (starting)
Mechanical Endurance (x1,000,000 ops)	Up to 15 million (low current models) / 4-6 million (high current models)
Electrical Endurance AC-3 (x10,000 ops)	100 (9-25A) / 60-80 (32-65A) / 60 (80-95A)
Operating Frequency	750 - 1200 operations/hour
Auxiliary Contact Rating	Rated insulation voltage 690V / Conventional thermal current 10A
Wire Range	1-4 mm² up to 4-50 mm² (model dependent)
Environmental & Installation	Working temperature: -40~+70℃ / Altitude: up to 3000m / Pollution level 3 / Installation category III

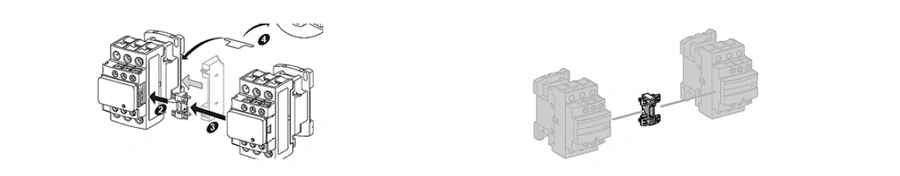

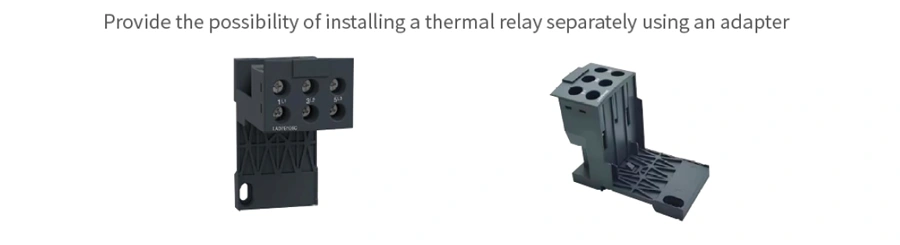

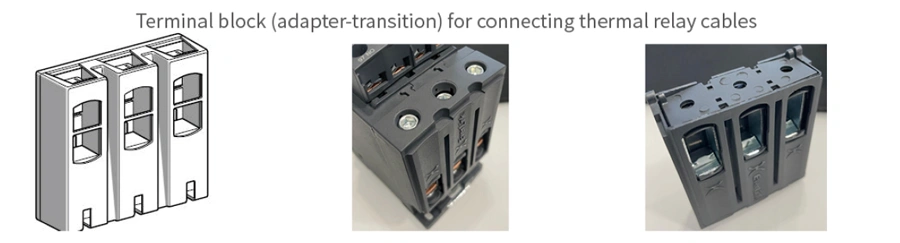

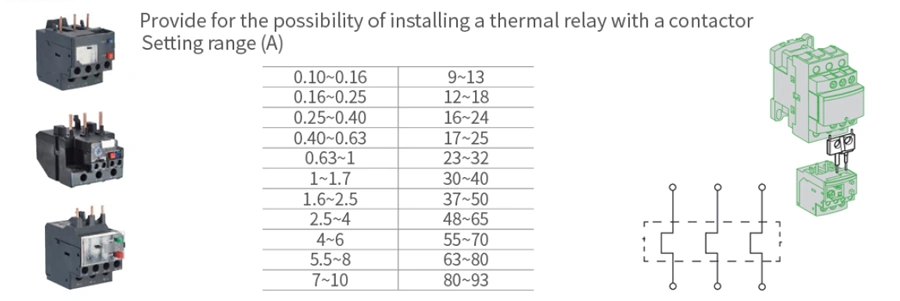

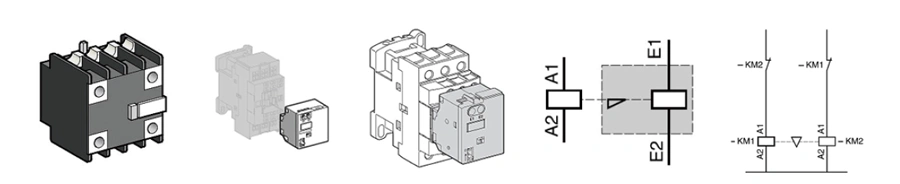

Configuration Options: Available in 3P (3NO) or 4P (4NO or 2NO+2NC) configurations. Built-in auxiliary contacts: 1NO+1NC. Contact configuration diagram reference available upon request.
