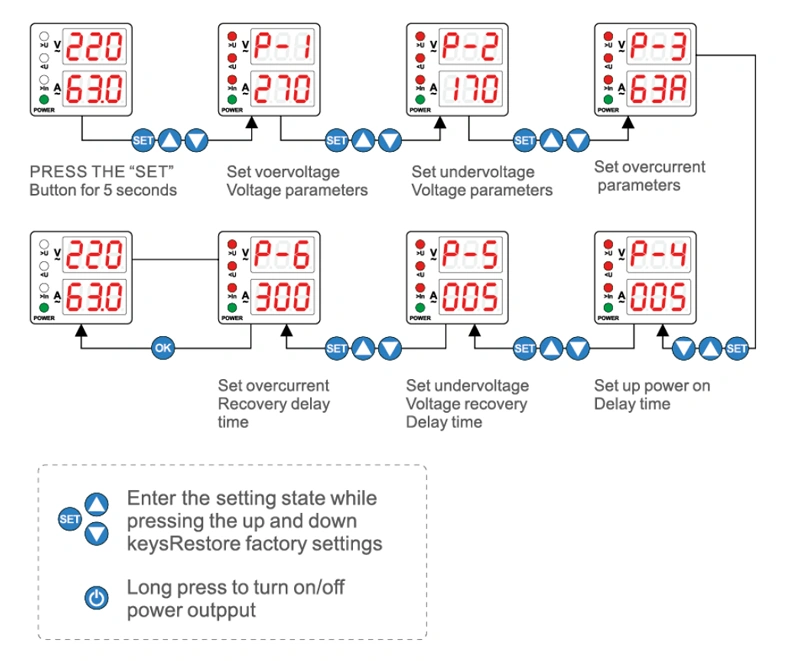

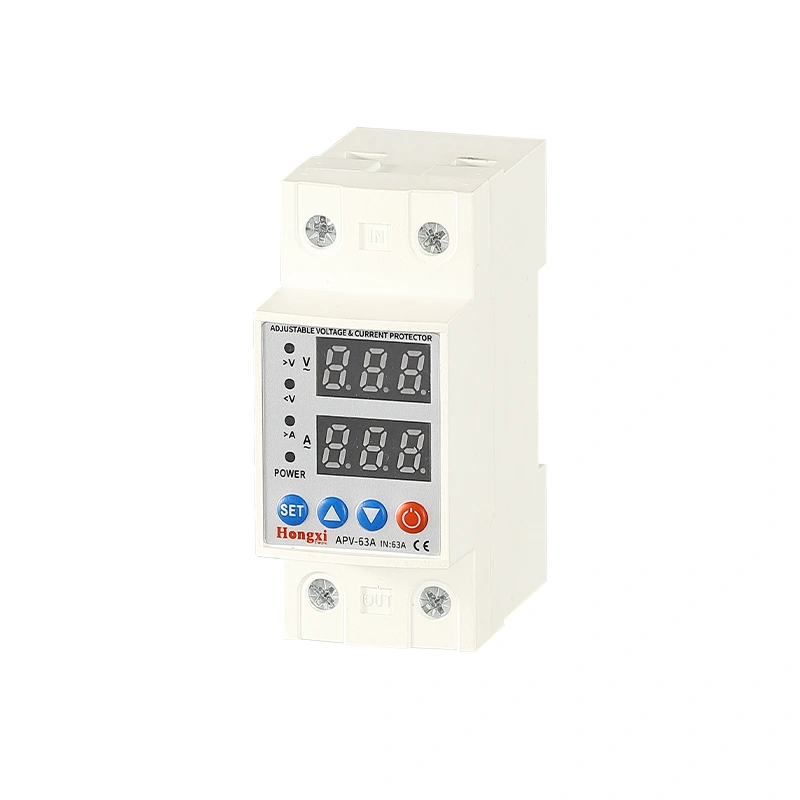

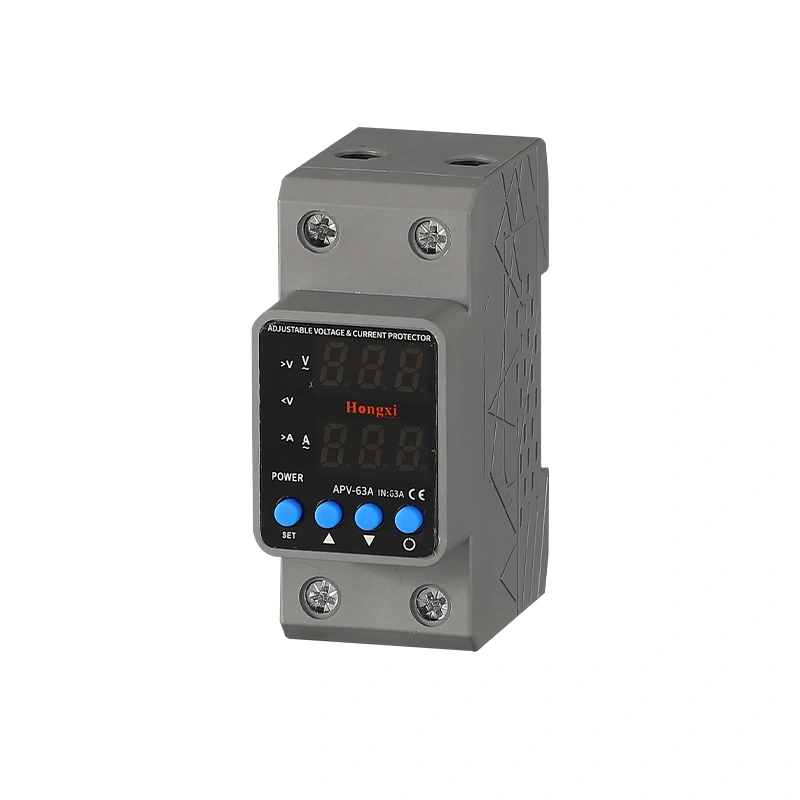

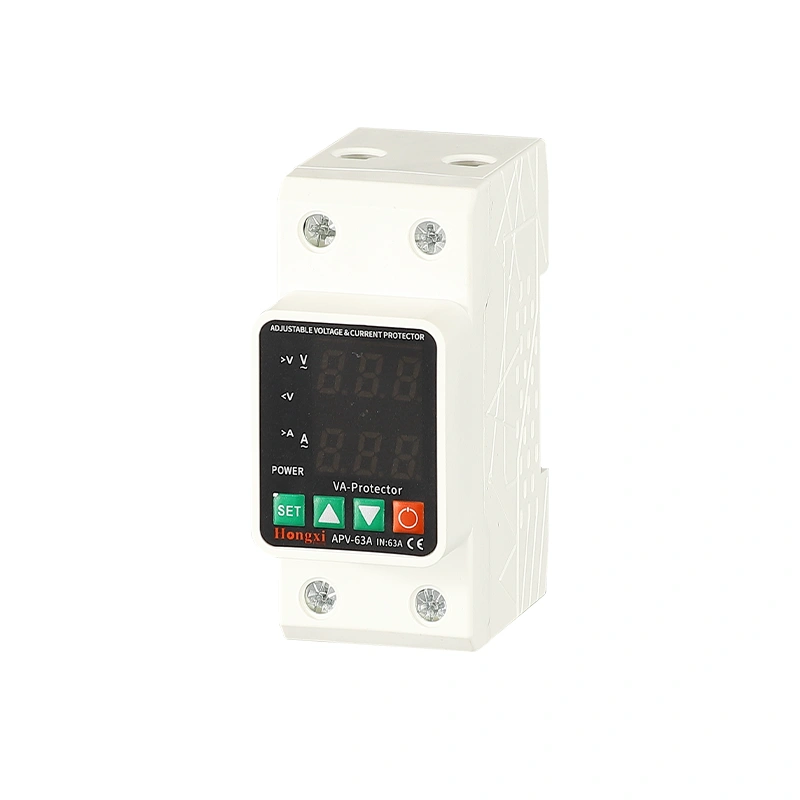

The AVP1-63 adjustable voltage and current protector has a rated current of up to 63A. It offers adjustable over-voltage (240-300V) and under-voltage (140-210V) protection, plus customizable startup/recovery delay times. With low power consumption (< 2W), 10,000+ electro-mechanical life cycles, and 35mm DIN rail installation, it suits electrical, industrial, and commercial applications.
Ideal for protecting household appliances, air conditioners, refrigeration units, industrial control panels, and sensitive electronic equipment, the AVP1‑63 automatically disconnects the load when voltage or current exceeds safe limits and reconnects once normal conditions are restored — eliminating manual reset intervention.
Normal Operating & Installation Conditions
- Ambient temperature: -20°C to +70°C.
- Altitude: ≤ 2000m.
- Relative humidity: ≤ 90% (non‑condensing).
- Installation type: 35mm symmetrical DIN rail (top‑hat rail).
- Terminal capacity: Supports solid/stranded copper conductors up to 25mm².
- Pollution degree: 2 (typical for protected indoor environments).
- Installation category: Category III.
Quality & Compliance
- IEC 60947‑4‑1 / 60947‑5‑1 compliant — meets international standards for control circuit devices and switching elements.
- CE marked — safe for distribution in European and international markets.
- High precision monitoring — protection accuracy <1%, response time <0.1s.
- Self‑recovery function — automatically restores power when voltage/current returns to safe range, eliminating manual reset.
- Low heat dissipation — energy‑efficient design keeps panel temperatures low.
- Manufactured under ISO 9001:2015 quality management system.
- Programmable parameters support mass‑customization for OEM projects.
